Why Your Pool Shell Stays Grounded: The Mechanics of Hydrostatic Relief
A pool shell is essentially a concrete boat. When it is full of water, the thousands of pounds of internal pressure keep it pinned against the earth. However, when the pool is emptied for service, the counter-force disappears. If the surrounding soil is saturated, the groundwater exerts upward pressure that can crack the floor or, in extreme cases, pop the entire vessel out of the soil.
This technical guide explains how hydrostatic relief valves work to prevent shell lifting. It is intended for property owners in Central Florida who are planning long-term maintenance or major exterior upgrades. Understanding these mechanics is a critical part of maintaining the structural integrity of the vessel during a finish project.
The Physics of Sub-Surface Pressure
In subtropical environments, soil is rarely static. When the water is removed from a pool, three specific risks emerge:
- Buoyancy: The empty shell becomes a hollow displacement vessel that naturally wants to float atop the groundwater.

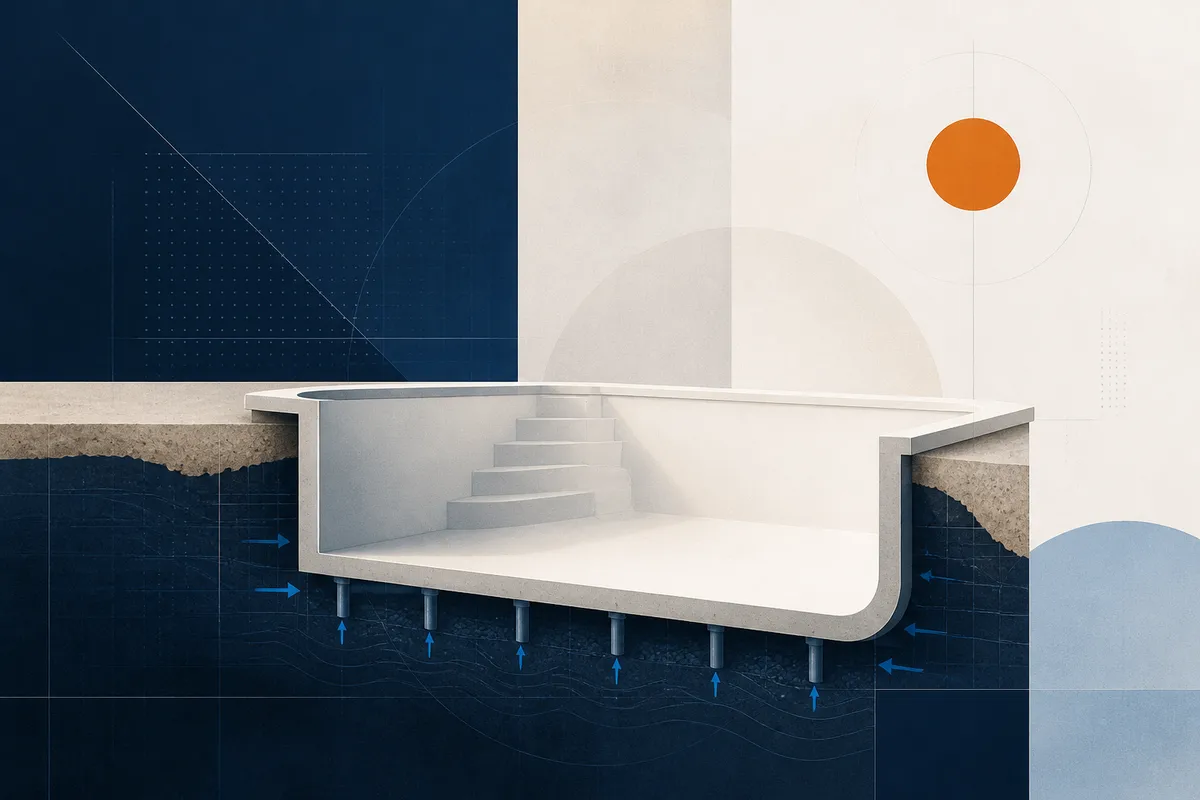

- Hydrostatic Pressure: Water trapped under the pool slab pushes upward with enough force to potentially damage reinforced concrete.
- Soil Shifting: Saturated residuum or sandy clays can become unstable when the weight of the pool is removed, leading to settling or tilting.
The Five Steps of Pressure Equalization
The mechanical defense against these risks is the pool main drain hydrostatic valve. This spring-loaded or gravity-fed device is a safety device that is installed in the main drain to release excess water and maintain a balanced pressure within the tank.
1Identify the Valve Location
The valve is typically threaded into the bottom of the main drain pot. In most residential setups, it is hidden beneath a grate. During a Pool Replastering project, this is the first component inspected after the initial pump-down.
2Monitor Differential Pressure
As the water level inside the pool drops, the pressure on the "pool side" of the valve decreases. A hydrostatic relief valve is a pressure sensitive device that reacts in the event the ground water pressure becomes greater than the pressure inside the pool.
3Activate the "Pop-Off" Mechanism
The valve contains a spring loaded mechanization and an o-ring seal. The valve senses this pressure difference and opens to allow groundwater to flow into the pool, equalising the pressure.
4Verify Visual Flow
During a safe drainage procedure, a technician looks for water entering through the floor. While it may look like a leak, this "weeping" is actually the safety system working as intended. It confirms that the external pressure is being bled off into the pool interior.
5Reset and Reseal
Once the external pressure subsides or the pool is refilled, the valve must be reseated. If the o-ring is brittle or debris like sand or pebbles gets stuck in the seat, the valve will leak water out of the pool once it is refilled. Replacing these seals is a standard part of a professional resurfacing scope.
The Groundwater Variable in Florida
Weather patterns dictate the safety of any pool drainage. The National Weather Service frequently monitors localized shifts in precipitation that can rapidly raise the water table in areas like Winter Park. If a pool is drained immediately after heavy rain, the hydrostatic valve may be forced to stay open to prevent a "float" event. It is important to note that relieving the pressure does not happen just because the hydrostat is present; it must be functioning correctly and the volume of water must be manageable by the valve.
The measurement of pressure exerted by a fluid at equilibrium at a given point within the fluid, due to the force of gravity.
How Orlando Pool Resurface helps
Managing sub-surface pressure is a foundational element of any Winter Park Service Area project. A standard scope of work includes a pre-drainage assessment and a physical inspection of the hydrostatic valve once the main drain is accessible. If a valve is seized or missing, it must be addressed before the shell is left empty for an extended period. For technical guidance on safe drainage or to schedule a structural inspection, property owners can reach the team at (689) 305-2500 or via the online request form.
Frequently asked questions
How do I know if my pool has a hydrostatic relief valve?
Most modern concrete and gunite pools have these valves installed inside the main drain at the deepest point. You can usually see a small threaded pipe or a spring-loaded cap if you remove the main drain cover.
What happens if the valve fails to open?
If the valve is stuck shut by mineral deposits or age, the groundwater pressure has nowhere to go. It will push against the bottom of the pool until the concrete cracks or the entire shell shifts upward. This can cause "floating," which can lead to significant structural damage to the pool and surrounding deck.
Why is there water coming into my pool while it’s empty?
If you see water bubbling up from the floor drain while the pool is empty, the hydrostatic valve is doing its job. It is letting groundwater in so that the pressure under the pool doesn't become high enough to lift the shell. This water is later pumped out just before the new finish is applied.
Can I drain my pool myself in Winter Park?
It is generally discouraged to drain a pool without professional oversight in Central Florida due to the high water table. A technician will typically check the National Weather Service data and may even check the actual groundwater level before pulling the plug.
Do fiberglass pools need hydrostatic valves?
Yes, fiberglass pools are susceptible to floating because they are lighter than concrete. Without a functioning relief valve or a system to dewater the ground around the shell, an empty fiberglass pool can pop out of the ground if the external pressure exceeds the internal weight.
How often should the valve be replaced?
The rubber gaskets and springs can degrade over time. Most professionals recommend replacing the valve or at least the internal seal whenever the pool is drained for resurfacing or major tile work to ensure the o-ring seal remains effective.
